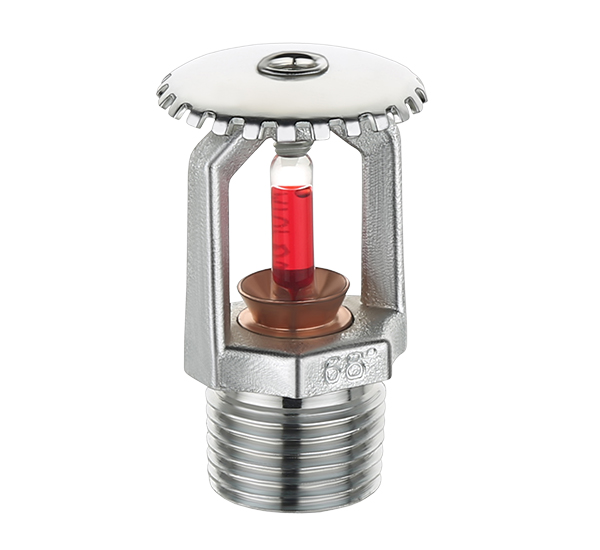

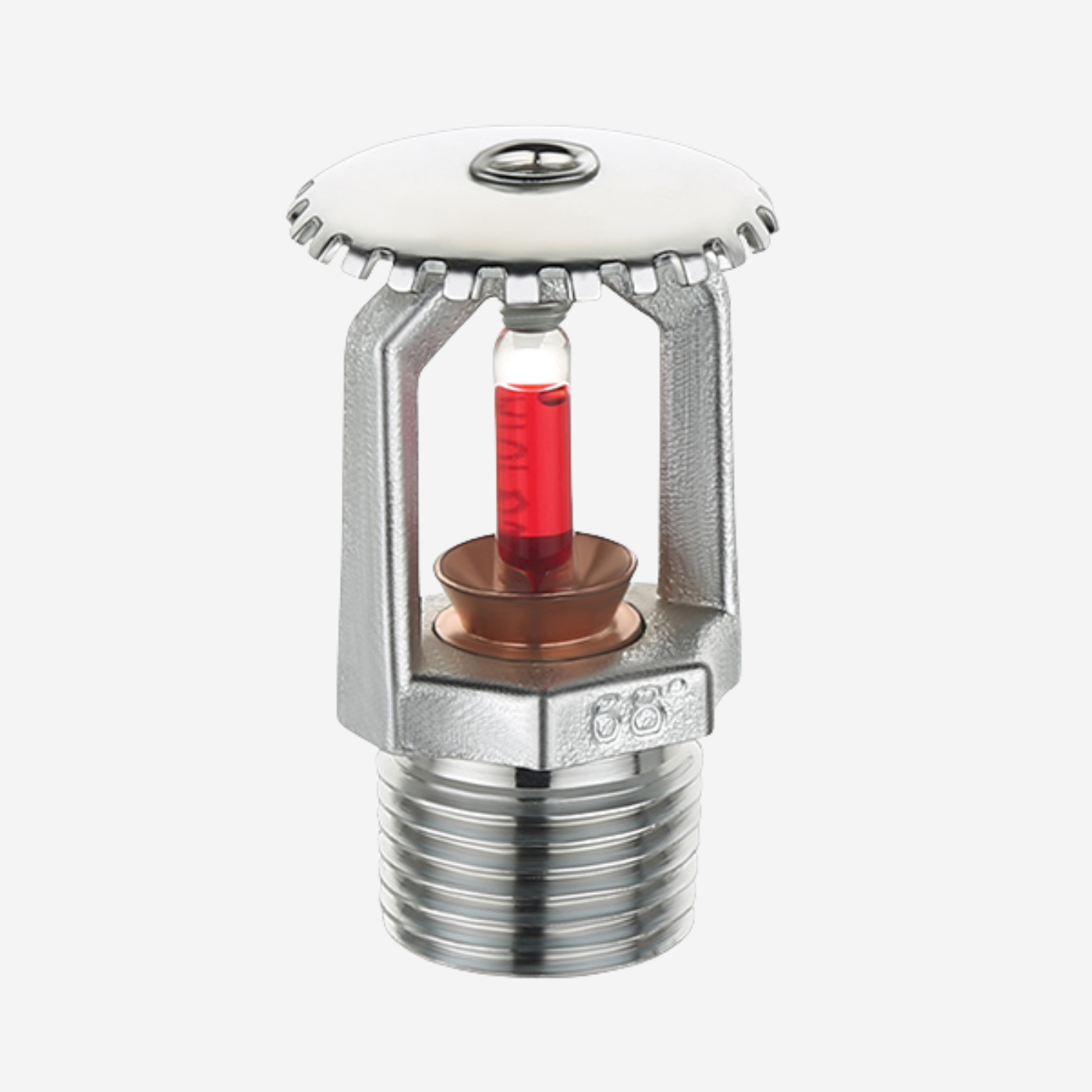

Automatic Sprinklers
Automatic Sprinklers are heat-activated fire protection devices designed to automatically discharge water when the surrounding temperature reaches the sprinkler’s rated value. They are widely used in commercial buildings, warehouses, hotels, hospitals, factories, offices, and residential fire protection systems. Common configurations include pendent, upright, and sidewall types
Specifications
| Specification | Details |
|---|---|
| Product Name | Automatic Sprinkler / Fire Sprinkler Head |
| Application | Fire Fighting / Fire Protection / Sprinkler System |
| Type | Pendent / Upright / Sidewall / Concealed |
| Material | Brass / Chrome Plated Brass / Stainless Steel |
| Thermal Element | Glass Bulb |
| Response Type | Standard Response / Quick Response |
| Common Temperature Ratings | 57°C / 68°C / 79°C / 93°C |
| K-Factor | Commonly K5.6 (80 metric) |
| Thread Size | 1/2″ NPT / 1/2″ BSPT (varies by model) |
| Maximum Working Pressure | Commonly 175 PSI (12 Bar) |
| Finish | Natural Brass / Chrome / White Coated |
| Installation Area | Ceiling / Sidewall / Concealed Mounting |
| Approvals | UL Listed / FM Approved / Other Certifications (model dependent) |
