Description

SPECIFICATIONS

Type:

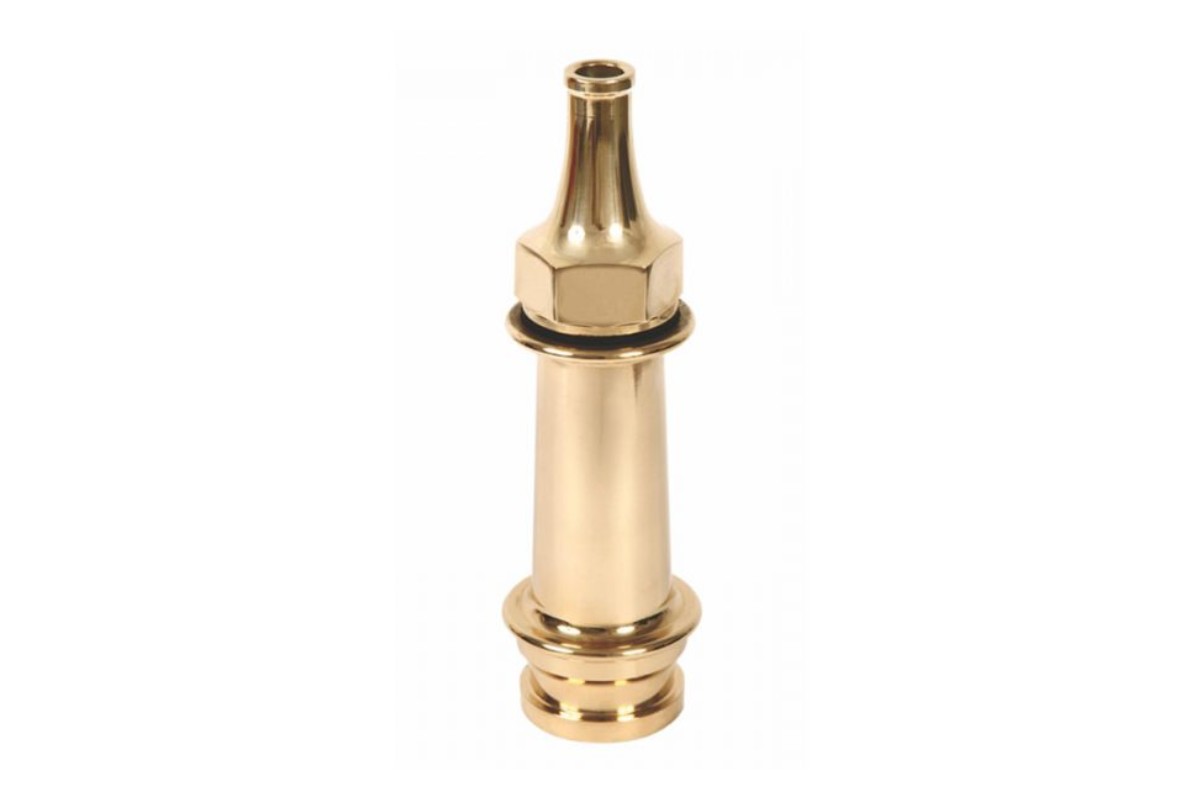

Solid Jet Nozzle

Material:
Gun Metal – IS:318
Stainless Steel – IS:3444
Aluminium Alloy – IS:6117

Inlet:
63mm / 2.5 inch Male Instantaneous

Outlet:
20mm Nozzle Tip

Rubber Washer:
IS:937 Type A

Hydrostatic Test:
Tested at 21 kgf/cm²

FEATURES (Text Format)

• Short Branch Pipe Nozzles manufactured in accordance with IS:903 standards.

• Instantaneous connection suitable for 65mm fire hose couplings and landing valves.

• Available in three material options: Gun Metal, Stainless Steel, and Aluminium Alloy.

• Approved by the Bureau of Indian Standards (BIS) and ISI Marked.

• Plungers are self-locking type for secure operation.

• All branch pipe nozzles are made with natural polished finish and are free from porosity, blow holes, and cracks.
