Description

SPECIFICATIONS

Type:

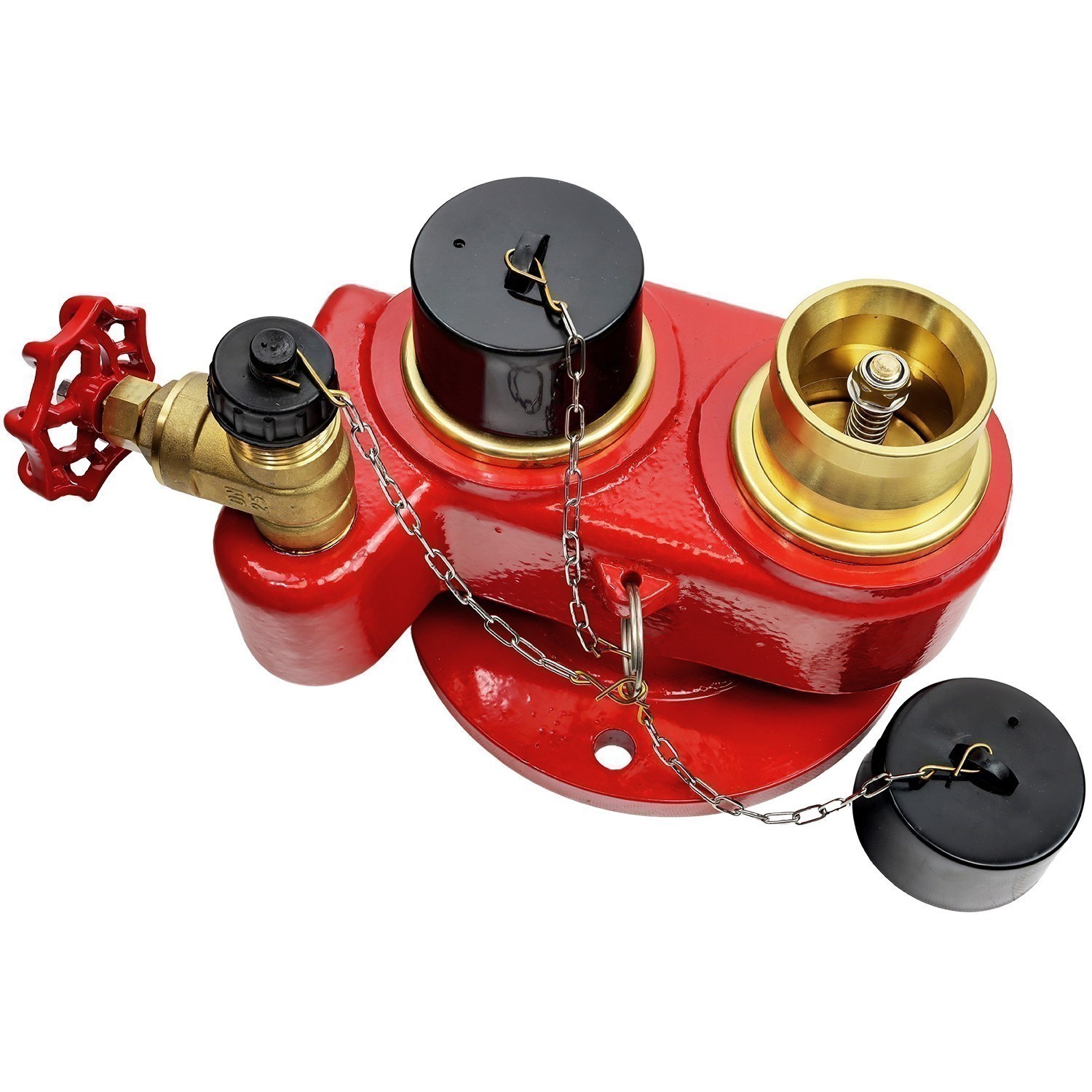

2-way / 3-way / 4-way Dry Riser Inlet

Body:
Spheroidal Graphite Cast Iron (Ductile Iron)
Stainless Steel IS:3444 Grade 1 & Grade 4

Inlet:
Gun Metal / Stainless Steel
63mm Male Instantaneous NRV Connection

Outlet:
4 inch NB Flanged (2-way)
4 inch Flanged (3-way)
6 inch Flanged (4-way)

Size:
2-way – 100mm
3-way – 100mm
4-way – 150mm

Performance Test:
Hydrostatic Tested at 22 kgf/cm²

FEATURES

• Dry Riser Inlet manufactured in accordance with IS:904 standards.

• Body made of Spheroidal Graphite Cast Iron (Ductile Iron) for strength and durability.

• Inlet connections and non-return valves made of Gun Metal or Stainless Steel.

• Each inlet connection is fitted with a spring-loaded mushroom type non-return valve.

• Every Dry Riser Inlet is painted red internally and externally for fire safety identification.

• NRV (Non-Return Valve) covered with PVC cap or rubber cap for protection.
