FEATURES

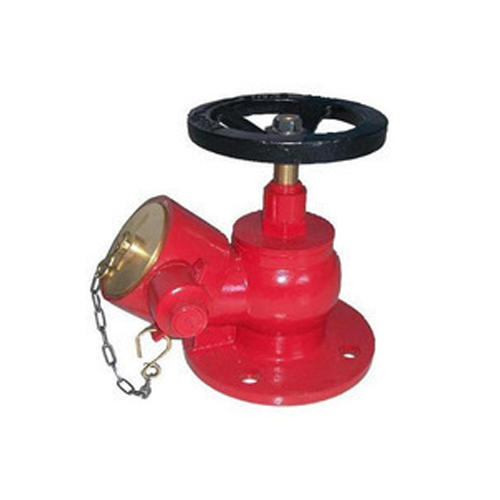

• Single Headed Landing Valve conforming to IS:5290 Type A standard.

• Available in Gun Metal and Stainless Steel material options.

• Approved by the Bureau of Indian Standards (BIS) and ISI Marked.

• Inlet: 75mm with 63mm female outlet instantaneous coupling.

• Body painted in red with black hand wheel for easy operation.

• Female instantaneous outlet supplied in polished finish, free from burrs and porosity.

SPECIFICATIONS

Type:
Single Headed Oblique Type Landing Valve

Body:
Gun Metal IS:318 LTB-2

Stainless Steel:
IS:3444 Grade 1 and Grade 4

Hand Wheel:
Cast Iron IS:210

Inlet:
75 / 80 mm NB Flanged Inlet

Outlet:
63mm Instantaneous coupling with pull-out type lugs / Quick Release Lugs

Material:
Gun Metal & Stainless Steel

Size:
63 mm / 2.5 inch

Performance Test:
Hydrostatic Test (Body Test): Tested at 21 kgf/cm²
