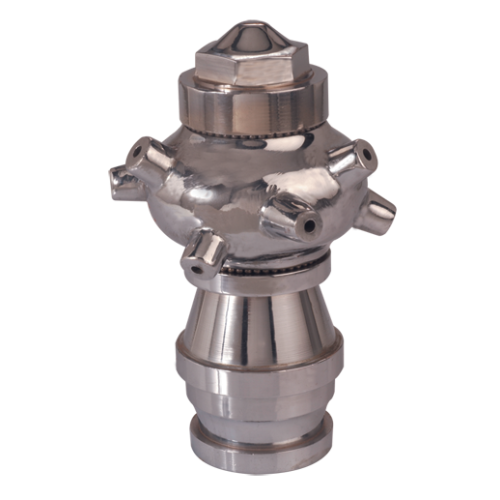

Revolving Nozzle
Revolving Nozzle is a high-performance firefighting nozzle designed to create a 3-dimensional revolving spray for effective cooling and fire control. Manufactured as per IS:906 standards, it supports Solid Jet, Fog, and Shut-off functions and is widely used for roof tank cooling, industrial fire protection, and firefighting operations.
FEATURES
- Revolving Nozzle manufactured in accordance with IS:906 Standard
- Nozzle creates 3-dimensional spray, resulting in excellent cooling mainly used for roof storage tanks
- Nozzle comes with Solid Jet / Fog / Complete Shut-off discharge pattern
- Nozzle supplied in Gun Metal
SPECIFICATIONS
- Type: Solid Jet / Fog / Shut-off
- Material: Gun Metal IS: 318
- Inlet: 63mm / 2.5 inch Male Instantaneous
- Outlet: Revolving Head
- Flow: 500 LPM at 7 Bar Inlet Pressure
- Hydrostatic Test: Tested at 21 kgf/cm²
The specs and operating details above align with manufacturer and seller references for IS:906 revolving nozzles, including 63mm male instantaneous inlet, revolving head outlet, and around 500 LPM at 7 bar.
